AM-1280800NGTZQW-00H AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AM-1280800NGTZQW-00H is a 10.1" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-1280800NGTZQW-00H supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 231(W)×154.4(H)×6.2(D) mm, viewing area size of 220.76(W)×140.4(H) mm, with surface treament of Hard coating, net weight of TBD. As a IPS, Normally Black, Transmissive LCM product, AM-1280800NGTZQW-00H can provides 1500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-1280800NGTZQW-00H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-1280800NGTZQW-00H |
|
Brand |
AMPIRE |
|
Diagonal Size |
10.1 inch |
|
Pixel Format |
1280(RGB)×800 [WXGA] 149PPI |
|
Active Area |
216.96(H)×135.6(V) mm |
|
Bezel Area |
220.76(H)×140.4(V) mm |
|
Luminance |
1500 cd/m² (Typ.) |
|
View Direction |
Symmetry |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Support Color |
16.7M 45% NTSC |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
231(H)×154.4(V) ×6.2(D) mm |
|
Treatment |
Hard coating |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Operating Mode |
IPS, Normally Black, Transmissive |
|
Light Source |
WLED [7S6P] , 50K hours , W/O Driver |
|
Touch Panel |
Without |
|
Interface Type |
LVDS (1 ch, 8-bit) 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

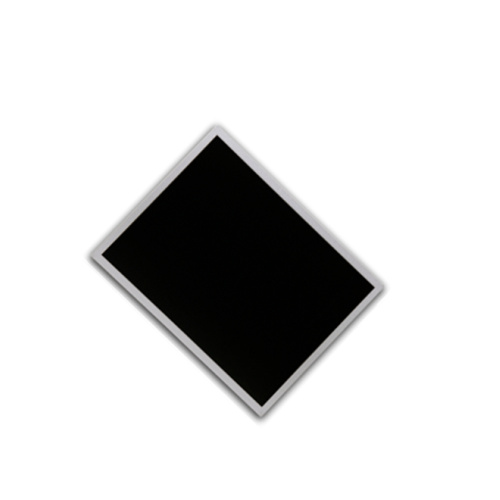

Product Picture:
