AM-1024600ITZQW-00H AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AM-1024600ITZQW-00H is a 10.1 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, without touch screen. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20180921 which was released out on 9 21 2018, AM-1024600ITZQW-00H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 234.9(W)×143(H)×4.9(D) mm, with surface treament of Antiglare, Hard coating. As a IPS, Normally Black, Transmissive LCM product, AM-1024600ITZQW-00H can provides 550 cd/m² display brightness 500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/28 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-1024600ITZQW-00H utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-1024600ITZQW-00H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×600, WSVGA, 117PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
222.72(W)×125.28(H) mm |
|
Outline Size |
234.9(W)×143(H) ×4.9(D) mm |
|
Surface |
Antiglare, Hard coating |
|
Brightness |
550 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Display Mode |
IPS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
12/28 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 70% NTSC |
|
Lamp Type |
WLED , 50K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 40 pins Connector |
|
Input Voltage |
3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

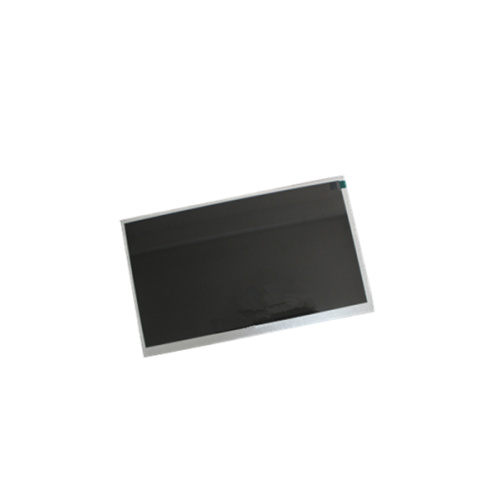

Product Picture:
