AM-19201200B2TZQW-00 AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
AM-19201200B2TZQW-00 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20160323 which was released out on 3 23 2016, AM-19201200B2TZQW-00 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.806(W)×135.504(H) mm, outline size of 230.12(W)×150.2(H)×6.95(D) mm. As a AHVA, Normally Black, Transmissive LCM product, AM-19201200B2TZQW-00 can provides 340 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 53% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. AM-19201200B2TZQW-00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-19201200B2TZQW-00 |
|
Panel Brand |
AMPIRE |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1200, WUXGA, 224PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
216.806(W)×135.504(H) mm |
|
Outline Size |
230.12(W)×150.2(H) ×6.95(D) mm |
|
Brightness |
340 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
AHVA, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 53% NTSC |
|
Lamp Type |
WLED , 12K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (2 ch, 8-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C |

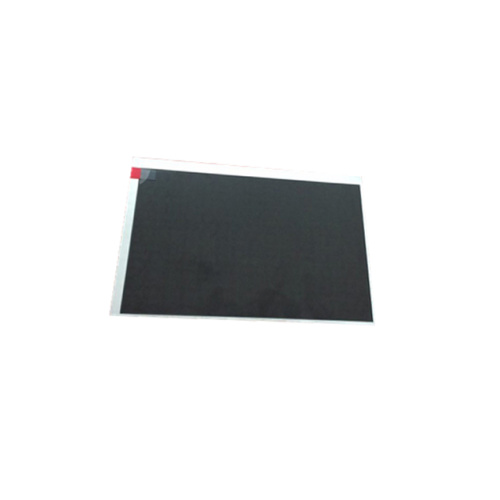

Product Picture:
