AM-1280800N1TZQW-T06H AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-1280800N1TZQW-T06H is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20140729 which was released out on 7 29 2014, AM-1280800N1TZQW-T06H supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 231(W)×154.4(H)×7.5(D) mm. As a IPS, Normally Black, Transmissive LCM product, AM-1280800N1TZQW-T06H can provides 425 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 44% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AM-1280800N1TZQW-T06H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-1280800N1TZQW-T06H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×800, WXGA, 149PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
216.96(W)×135.6(H) mm |
|
Outline Size |
231(W)×154.4(H) ×7.5(D) mm |
|
Brightness |
425 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
IPS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 44% NTSC |
|
Lamp Type |
WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP |
|
Signal Interface |
LVDS (1 ch, 8-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

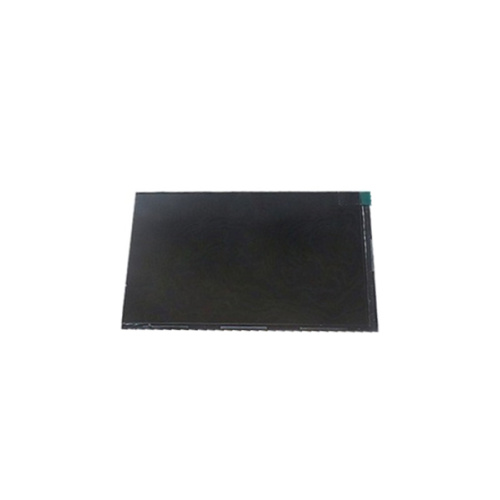

Product Picture:
