AM-1024600LTMQW-T04H AMPIRE 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-1024600LTMQW-T04H (Alias: AM1024600LTMQW-T04H) is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20121003 which was released out on 11 3 2012, AM-1024600LTMQW-T04H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×145.8(H)×9.25(D) mm, viewing area size of 225.92(W)×128.48(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-1024600LTMQW-T04H can provides 200 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 54% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-1024600LTMQW-T04H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-1024600LTMQW-T04H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
10.1" |
|
Resolution |
1024(RGB)×600, WSVGA, 117PPI |
|
Display Area |
222.72(W)×125.28(H) mm |
|
Outline Size |
235(W)×145.8(H) ×9.25(D) mm |
|
Brightness |
200 cd/m² (Typ.) |
|
Viewing Angle |
70/70/70/50 (Typ.)(CR≥10) |
|
Display Colors |
262K 54% NTSC |
|
Frequency |
60Hz |
|
Weight |
TBD |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
225.92(W)×128.48(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
5/20 (Typ.)(Tr/Td) |
|
Lamp Type |
6S6P WLED , 20K hours , With LED Driver |
|
Touch Screen |
PCAP |
|
Signal Interface |
LVDS (1 ch, 6-bit) , 30 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |

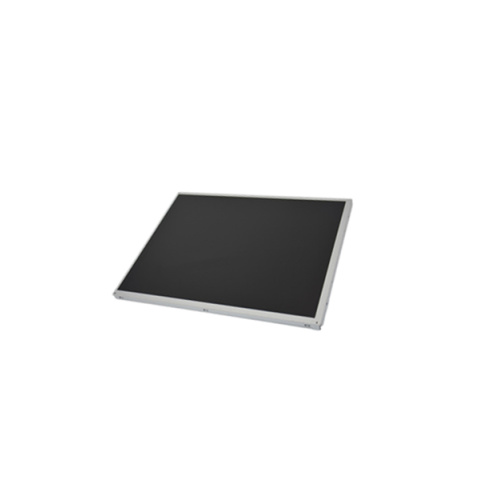

Product Picture:
