AM-1280800J3TZQW-00 AMPIRE 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

AM-1280800J3TZQW-00 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20130912 which was released out on 9 12 2013, AM-1280800J3TZQW-00 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 231(W)×150.7(H)×6.8(D) mm, with surface treament of Hard coating, net weight of TBD. As a IPS, Normally Black, Transmissive LCM product, AM-1280800J3TZQW-00 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. AM-1280800J3TZQW-00 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AM-1280800J3TZQW-00
Panel Brand	AMPIRE
Panel Size	10.1"
Resolution	1280(RGB)×800, WXGA, 149PPI
Display Area	216.96(W)×135.6(H) mm
Outline Size	231(W)×150.7(H) ×6.8(D) mm
Brightness	350 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M
Frequency	60Hz
Weight	TBD
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Surface	Hard coating
Contrast Ratio	800:1 (Typ.) (TM)
Display Mode	IPS, Normally Black, Transmissive
Response Time	10/15 (Typ.)(Tr/Td)
Lamp Type	3S10P WLED , 15K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

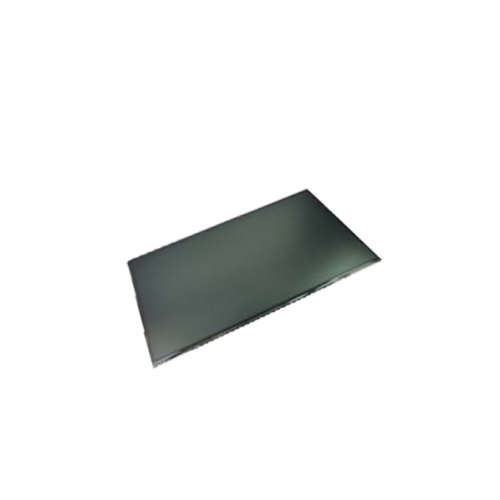

Product Picture:

AM-1280800J3TZQW-00
