AM-800600MTMQW-50H AMPIRE 8.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800600MTMQW-50H is a 8.4" diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Ampire TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800600MTMQW-50H supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 189.75(W)×149.4(H)×5.3(D) mm, viewing area size of 173.4(W)×130.8(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800600MTMQW-50H can provides 1000 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 6S5P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-800600MTMQW-50H utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800600MTMQW-50H |
|
Brand |
AMPIRE |
|
Diagonal Size |
8.4 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×600 [SVGA] 119PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
170.4(H)×127.8(V) mm |
|
Outline Dim. |
189.75(H)×149.4(V) ×5.3(D) mm |
|
Bezel Area |
173.4(H)×130.8(V) mm |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
600:1 (Typ.) (TM) |
|
Response Time |
8 (Typ.)(Tr+Td) |
|
Viewing Angle |
75/75/60/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K/16.7M |
|
Light Source |
WLED [6S5P] , W/O Driver |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

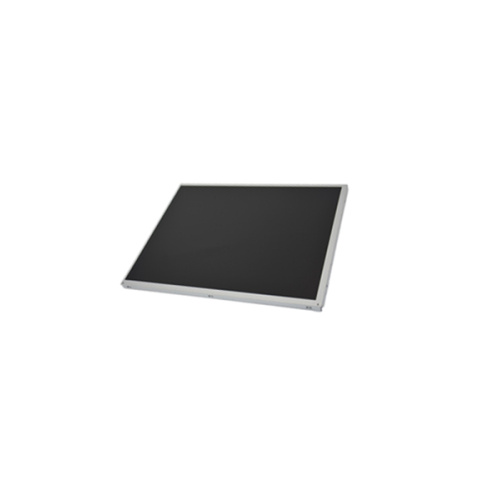

Product Picture:
