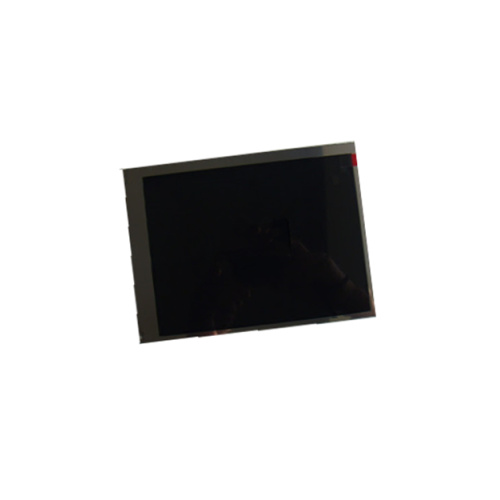

AM-800600M3TNQW-01H-F AMPIRE 8.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800600M3TNQW-01H-F is a 8.4 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 8.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20110323 which was released out on 3 23 2011, AM-800600M3TNQW-01H-F supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 203(W)×145.5(H)×8.3(D) mm, viewing area size of 174.15(W)×131.2(H) mm, net weight of 280g. As a TN, Normally White, Transmissive LCM product, AM-800600M3TNQW-01H-F can provides 450 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-800600M3TNQW-01H-F utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-800600M3TNQW-01H-F |
|
Manufacturer |
AMPIRE |
|
Screen Size |
8.4 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×600 (SVGA) 119PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
170.4 × 127.8 (H×V) |
|
Outline(mm) |
203 × 145.5 × 8.3 (H×V×D) |
|
Bezel Area(mm) |
174.15 × 131.2 (H×V) |
|
Luminance |
450 cd/m² (Typ.) |
|
Contrast Ratio |
600 : 1 (Typ.) (TM) |
|
Viewing Angle |
75/75/60/70 (Typ.)(CR≥10) |
|
Response |
8 (Typ.)(Tr+Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K |
|
Backlight |
12S4P WLED , 50K hours , With LED Driver |
|
Mass |
280g |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6-bit) , Connector 20 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
