AM-800600P5TMQW-A6H-E AMPIRE 8.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800600P5TMQW-A6H-E is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Ampire TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20170412 which was released out on 4 12 2017, AM-800600P5TMQW-A6H-E supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 183(W)×141(H)×9.15(D) mm, viewing area size of 163.8(W)×123.3(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, AM-800600P5TMQW-A6H-E can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 51% (NTSC). This product adopted 4S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, With LED Driver. AM-800600P5TMQW-A6H-E utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-800600P5TMQW-A6H-E |
|
Manufacturer |
AMPIRE |
|
Screen Size |
8.0 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×600 (SVGA) 125PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
162 × 121.5 (H×V) |
|
Outline(mm) |
183 × 141 × 9.15 (H×V×D) |
|
Bezel Area(mm) |
163.8 × 123.3 (H×V) |
|
Treatment |
Antiglare |
|
Luminance |
500 cd/m² (Typ.) |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Response |
25/25 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 51% NTSC |
|
Backlight |
4S8P WLED , 25K hours , With LED Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

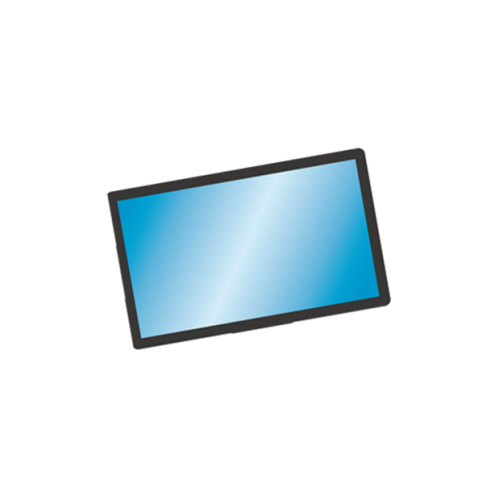

Product Picture:
