AM-800480D2TMQW-TA0H is a 8.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140217 which was released out on 2 17 2014, AM-800480D2TMQW-TA0H supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H) mm, viewing area size of 180.1(W)×103.4(H) mm, with surface treament of Antiglare. As a TN, Normally White, Transmissive LCM product, AM-800480D2TMQW-TA0H can provides 380 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-800480D2TMQW-TA0H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input.


Model Name

AM-800480D2TMQW-TA0H

Manufacturer

AMPIRE

Screen Size

8.0 inch

Screen Type

LCM ,   a-Si TFT-LCD

Pixel Number

800(RGB)×480   (WVGA)  116PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

176.64 × 99.36 (H×V)

Outline(mm)

192.8 × 116.9 (H×V×D)

Bezel Area(mm)

180.1 × 103.4 (H×V)

Treatment

Antiglare

Luminance

380 cd/m² (Typ.)

Contrast Ratio

500 : 1 (Typ.) (TM)

Viewing Angle

70/70/50/70 (Typ.)(CR≥10)

Response

10/15 (Typ.)(Tr/Td) ms

Work Mode

TN, Normally White, Transmissive

Color Depth

16.7M

Backlight

WLED , 20K hours , No Driver

Refresh Rate

60Hz

Touchscreen

PCAP

Signal Type

LVDS (1 ch, 8-bit) , 30 pins Connector

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C

Product Picture:

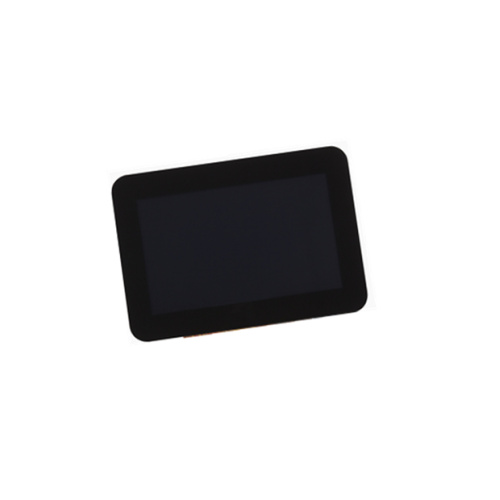

AM-800480D2TMQW-TA0H
