AM-800600P2TMQW-A0H AMPIRE 8.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800600P2TMQW-A0H is a 8.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20110808 which was released out on 8 8 2011, AM-800600P2TMQW-A0H supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 183(W)×141(H)×10.85(D) mm, viewing area size of 163.8(W)×123.3(H) mm, with surface treament of Antiglare, net weight of 270g. As a TN, Normally White, Transmissive LCM product, AM-800600P2TMQW-A0H can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 56% (NTSC). This product adopted 4S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, With LED Driver. AM-800600P2TMQW-A0H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800600P2TMQW-A0H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
8.0" |
|
Resolution |
800(RGB)×600, SVGA, 125PPI |
|
Display Area |
162(W)×121.5(H) mm |
|
Outline Size |
183(W)×141(H) ×10.85(D) mm |
|
Brightness |
500 cd/m² (Typ.) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
262K 56% NTSC |
|
Frequency |
60Hz |
|
Weight |
270g |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
163.8(W)×123.3(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Lamp Type |
4S8P WLED , 25K hours , With LED Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

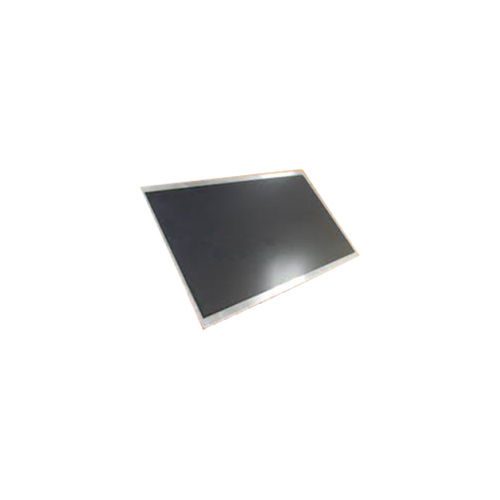

Product Picture:
