AM-800600P4TMQW-A0H AMPIRE 8.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | TAIWAN |
---|---|
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,EXW |
Certificate: | CE,ROHS,ISO9001 |
Transportation: | Ocean,Land,Air |
Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800600P4TMQW-A0H is a 8.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.AM-800600P4TMQW-A0H supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 200.4(W)×141(H)×10.85(D) mm, with surface treament of Antiglare, net weight of 350g. As a TN, Normally White, Transmissive LCM product, AM-800600P4TMQW-A0H can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 51% (NTSC). This product adopted 4S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, With LED Driver. AM-800600P4TMQW-A0H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
Model |
AM-800600P4TMQW-A0H |
Brand |
AMPIRE |
Diagonal Size |
8.0 inch |
Type |
a-Si TFT-LCD, LCM |
Pixel Format |
800(RGB)×600 [SVGA] 125PPI |
Configuration |
RGB Vertical Stripe |
Active Area |
162(H)×121.5(V) mm |
Outline Dim. |
200.4(H)×141(V) ×10.85(D) mm |
Treatment |
Antiglare |
Luminance |
500 cd/m² (Typ.) |
Contrast Ratio |
500:1 (Typ.) (TM) |
View Direction |
6 o'clock |
Response Time |
25/25 (Typ.)(Tr/Td) |
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
Support Color |
262K 51% NTSC |
Light Source |
WLED [4S8P] , 25K hours , With LED Driver |
Weight |
350g |
Frame Rate |
60Hz |
Touch Panel |
Without |
Interface Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
Power Supply |
3.3V (Typ.) |
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

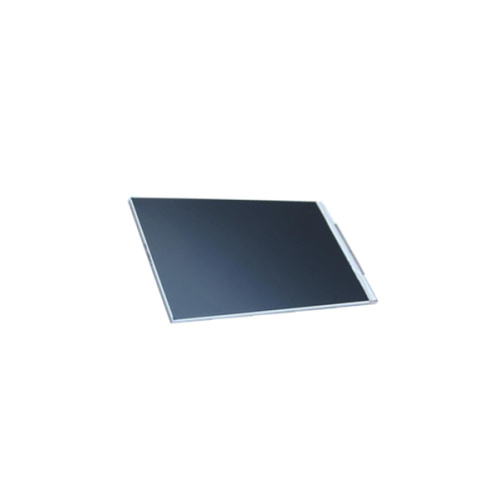

Product Picture:
