AM-800480RSTMQW-TB4H AMPIRE 7.0 inch TFT-LCD
  • AM-800480RSTMQW-TB4H AMPIRE 7.0 inch TFT-LCD
AM-800480RSTMQW-TB4H AMPIRE 7.0 inch TFT-LCD

AM-800480RSTMQW-TB4H AMPIRE 7.0 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,SHENZHEN
Product Description
Product Description

AM-800480RSTMQW-TB4H is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20131211 which was released out on 12 11 2013, AM-800480RSTMQW-TB4H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×99.5(H)×7.61(D) mm, viewing area size of 155.3(W)×94.3(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480RSTMQW-TB4H can provides 425 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. AM-800480RSTMQW-TB4H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.


Panel Model

AM-800480RSTMQW-TB4H

Panel Brand

AMPIRE

Panel Size

7.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

800(RGB)×480, WVGA, 133PPI

Pixel Format

RGB Vertical Stripe

Display Area

152.4(W)×91.44(H) mm

Bezel Opening

155.3(W)×94.3(H) mm

Outline Size

165(W)×99.5(H) ×7.61(D) mm

Brightness

425 cd/m² (Typ.)

Contrast Ratio

400:1 (Typ.) (TM)

Viewing Angle

70/70/70/60 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

6 o'clock

Response Time

5/11 (Typ.)(Tr/Td)

Display Colors

262K

Lamp Type

3S10P WLED , 40K hours , With LED Driver

Frequency

60Hz

Touch Screen

PCAP

Panel Weight

TBD

Signal Interface

LVDS (1 ch, 6-bit) , 40 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

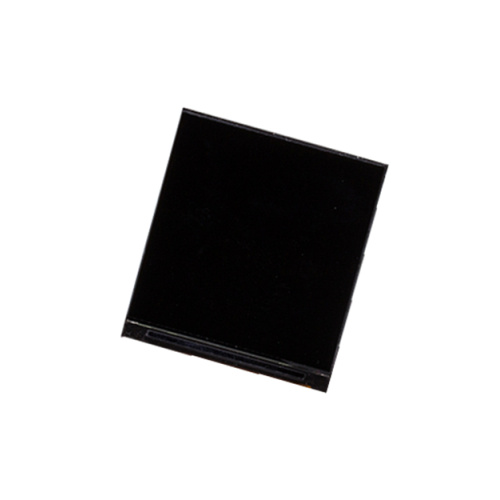

Product Picture:

AM-800480RSTMQW-TB4H
