AM-1024600DTZQW-TA9H is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20180319 which was released out on 3 19 2018, AM-1024600DTZQW-TA9H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.221(W)×85.92(H) mm, outline size of 184(W)×128(H)×12.6(D) mm. As a IPS, Normally Black, Transmissive LCM product, AM-1024600DTZQW-TA9H can provides 850 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 58% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-1024600DTZQW-TA9H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.


Model

AM-1024600DTZQW-TA9H

Brand

AMPIRE

Diagonal Size

7.0 inch

Pixel Format

1024(RGB)×600  [WSVGA]  170PPI

Active Area

154.221(H)×85.92(V) mm

Luminance

850 cd/m² (Typ.)

View Direction

Symmetry

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Support Color

16.7M   58% NTSC

Frame Rate

60Hz

Type

a-Si TFT-LCD , LCM

Configuration

RGB Vertical Stripe

Outline Dim.

184(H)×128(V) ×12.6(D) mm

Contrast Ratio

800:1 (Typ.) (TM)

Response Time

13/15 (Typ.)(Tr/Td)

Operating Mode

IPS, Normally Black, Transmissive

Light Source

WLED , 50K hours , With LED Driver

Touch Panel

PCAP

Interface Type

LVDS (1 ch, 8-bit) 20 pins Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

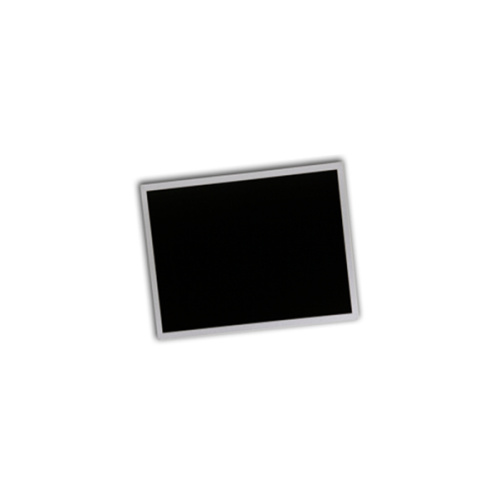

Product Picture:

AM-1024600DTZQW-TA9H

Related Product

Video/VGA/DVI/HDMI Controller
