AM-800480RBTMQW-TC1H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800480RBTMQW-TC1H is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20170626 which was released out on 6 26 2017, AM-800480RBTMQW-TC1H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×8.41(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150g (Typ.). As a TN, Normally White, Transmissive LCM product, AM-800480RBTMQW-TC1H can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-800480RBTMQW-TC1H utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480RBTMQW-TC1H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
7.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 133PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
152.4(W)×91.44(H) mm |
|
Outline Size |
165(W)×104.44(H) ×8.41(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Display Colors |
262K 45% NTSC |
|
Lamp Type |
3S10P WLED , 50K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP |
|
Panel Weight |
150g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

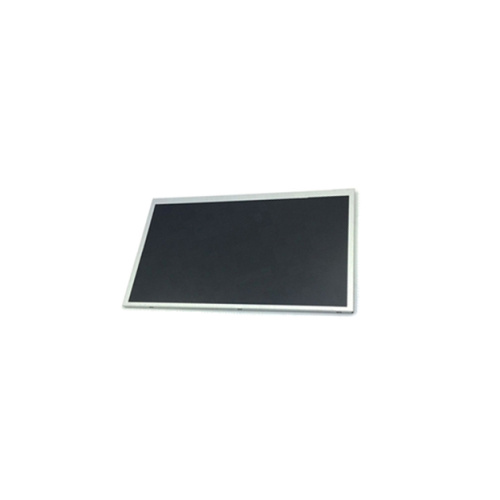

Product Picture:
