AM-800480RSTMQW-TAEH AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480RSTMQW-TAEH is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touch screen PCAP. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480RSTMQW-TAEH supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 174(W)×118(H)×9.79(D) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480RSTMQW-TAEH can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. AM-800480RSTMQW-TAEH utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-800480RSTMQW-TAEH |
|
Manufacturer |
AMPIRE |
|
Screen Size |
7.0 inch |
|
Pixel Number |
800(RGB)×480 (WVGA) 133PPI |
|
Active Area(mm) |
152.4 × 91.44 (H×V) |
|
Luminance |
400 (Typ.)(cd/m²) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Good View at |
6 o'clock |
|
Color Depth |
262K |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
174 × 118 × 9.79 (H×V×D) |
|
Contrast Ratio |
400 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
5/11 (Typ.)(Tr/Td) ms |
|
Backlight |
3S10P WLED , 40K hours , With LED Driver |
|
Touchscreen |
PCAP |
|
Signal Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |

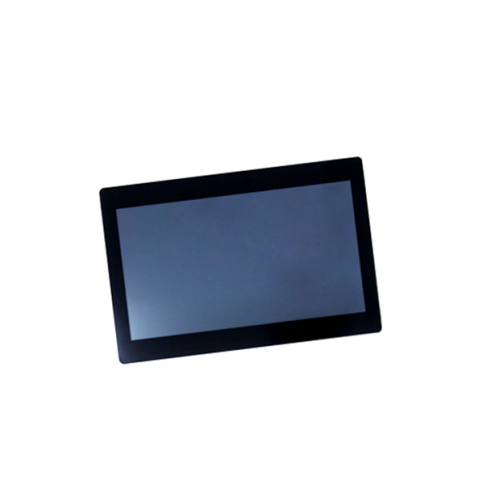

Product Picture:
