AM-1280800P4TZQW-T14H AMPIRE 7.0 inch TFT-LCD
  • AM-1280800P4TZQW-T14H AMPIRE 7.0 inch TFT-LCD
AM-1280800P4TZQW-T14H AMPIRE 7.0 inch TFT-LCD

AM-1280800P4TZQW-T14H AMPIRE 7.0 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,SHENZHEN
Product Description
Product Description


Ampire Co., Ltd. (hereafter called AMPIREAM-1280800P4TZQW-T14H is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20180315 which was released out on 3 15 2018, AM-1280800P4TZQW-T14H supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 149.76(W)×93.6(H) mm, outline size of 162.3(W)×107.9(H)×11.76(D) mm, viewing area size of 152.76(W)×96.6(H) mm. As a SFT, Normally Black, Transmissive LCM product, AM-1280800P4TZQW-T14H can provides 850 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-1280800P4TZQW-T14H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input.


Model Name

AM-1280800P4TZQW-T14H

Manufacturer

AMPIRE

Screen Size

7.0 inch

Screen Type

LCM,   a-Si TFT-LCD

Pixel Number

1280(RGB)×800   (WXGA)  217PPI

Arrangement

RGB Vertical Stripe

Active Area(mm)

149.76 × 93.6 (H×V)

Outline(mm)

162.3 × 107.9 × 11.76 (H×V×D)

Bezel Area(mm)

152.76 × 96.6 (H×V)

Luminance

850 cd/m² (Typ.)

Contrast Ratio

800 : 1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Response

35 (Typ.)(Tr+Td) ms

Good View at

Symmetry

Work Mode

SFT, Normally Black, Transmissive

Color Depth

16.7M   50% NTSC

Backlight

6S4P WLED , 50K hours , With LED Driver

Refresh Rate

60Hz

Touchscreen

PCAP

Signal Type

LVDS (1 ch, 8-bit) , Connector 20 pins

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 80 °C    Operating Temp.: -20 ~ 70 °C


Product Picture:

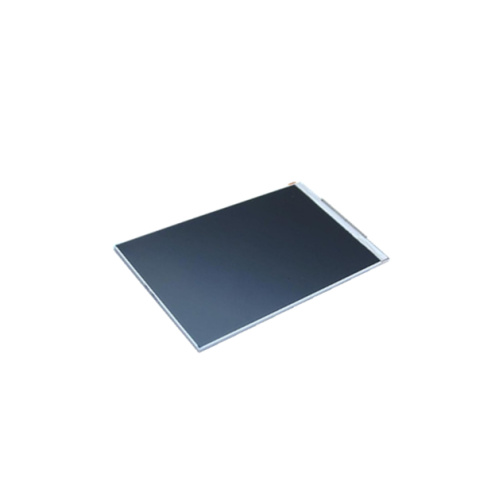

AM-1280800P4TZQW-T14H
