Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480RBTMQW-TB2H-A is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20151028 which was released out on 10 28 2015, AM-800480RBTMQW-TB2H-A supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×7.6(D) mm, viewing area size of 155.3(W)×94.30(H) mm. As a TN, Normally White, Transmissive LCM product, AM-800480RBTMQW-TB2H-A can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/00 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. AM-800480RBTMQW-TB2H-A utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-800480RBTMQW-TB2H-A |
|
Manufacturer |
AMPIRE |
|
Screen Size |
7.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×480 (WVGA) 133PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
152.4 × 91.44 (H×V) |
|
Outline(mm) |
165 × 104.44 × 7.6 (H×V×D) |
|
Bezel Area(mm) |
155.3 × 94.30 (H×V) |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
400 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/00 (Typ.)(CR≥10) |
|
Response |
5/11 (Typ.)(Tr/Td) ms |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K |
|
Backlight |
3S10P WLED , 40K hours , With LED Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP |
|
Signal Type |
Parallel RGB (1 ch, 6-bit) , Connector 40 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

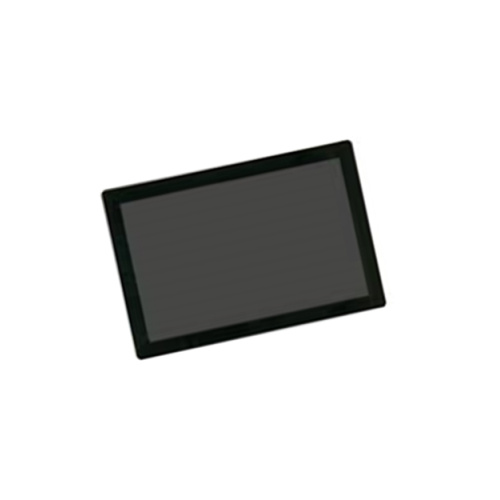

Product Picture:
