AM-1024600K2TMQW-02H-A AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-1024600K2TMQW-02H-A is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20150805 which was released out on 8 5 2015, AM-1024600K2TMQW-02H-A supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.5(W)×104.44(H)×9.46(D) mm, viewing area size of 156.2(W)×92.6(H) mm, with surface treament of Antiglare, net weight of 139g (Typ.). As a TN, Normally White, Transmissive LCM product, AM-1024600K2TMQW-02H-A can provides 500 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-1024600K2TMQW-02H-A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-1024600K2TMQW-02H-A |
|
Brand |
AMPIRE |
|
Diagonal Size |
7.0 inch |
|
Pixel Format |
1024(RGB)×600 [WSVGA] 169PPI |
|
Active Area |
153.6(H)×90(V) mm |
|
Bezel Area |
156.2(H)×92.6(V) mm |
|
Luminance |
500 cd/m² (Typ.) |
|
Viewing Angle |
75/75/70/75 (Typ.)(CR≥10) |
|
Support Color |
262K/16.7M |
|
Weight |
139g (Typ.) |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
165.5(H)×104.44(V) ×9.46(D) mm |
|
Treatment |
Antiglare |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Light Source |
WLED [8S3P] , 50K hours , With LED Driver |
|
Touch Panel |
Without |
|
Interface Type |
LVDS (1 ch, 6/8-bit) 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

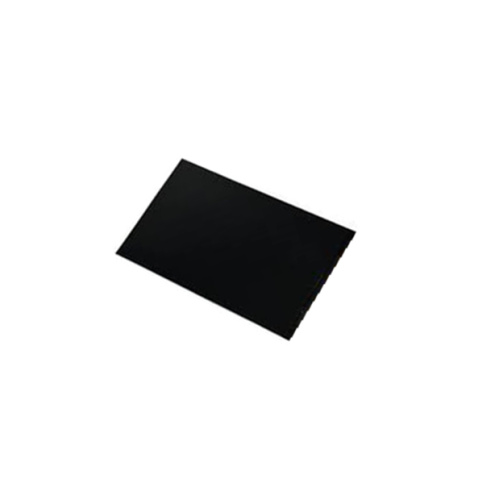

Product Picture:
