AM-1024600K5TMQW-09H AMPIRE 7.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AM-1024600K5TMQW-09H is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20170116 which was released out on 1 16 2017, AM-1024600K5TMQW-09H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.5(W)×104.44(H)×9.46(D) mm, viewing area size of 156.2(W)×92.6(H) mm, with surface treament of Glare (Haze 0%), Hard coating, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-1024600K5TMQW-09H can provides 500 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-1024600K5TMQW-09H utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	AM-1024600K5TMQW-09H
Panel Brand	AMPIRE
Panel Size	7.0"
Resolution	1024(RGB)×600, WSVGA, 169PPI
Display Area	153.6(W)×90(H) mm
Outline Size	165.5(W)×104.44(H) ×9.46(D) mm
Brightness	500 cd/m² (Typ.)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Display Colors	262K/16.7M
Frequency	60Hz
Weight	TBD
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	156.2(W)×92.6(H) mm
Surface	Glare (Haze 0%), Hard coating
Contrast Ratio	700:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	20/20 (Typ.)(Tr/Td)
Lamp Type	5S3P WLED , 50K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C

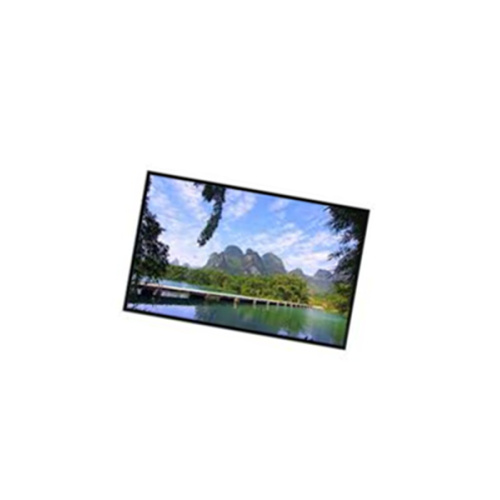

Product Picture:

AM-1024600K5TMQW-09H
