AM-800480ADTNQW-T30H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800480ADTNQW-T30H is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20131119 which was released out on 11 19 2013, AM-800480ADTNQW-T30H supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×7.35(D) mm. As a TN, Normally White, Transmissive LCM product, AM-800480ADTNQW-T30H can provides 210 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-800480ADTNQW-T30H utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3/10.4/16/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800480ADTNQW-T30H |
|
Brand |
AMPIRE |
|
Diagonal Size |
7.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] 134PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
154.08(H)×85.92(V) mm |
|
Outline Dim. |
164.9(H)×100(V) ×7.35(D) mm |
|
Luminance |
210 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
16.7M 55% NTSC |
|
Light Source |
WLED [3S6P] , 20K hours , W/O Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
Parallel RGB (1 ch, 8-bit) + SPI , 50 pins Connector |
|
Power Supply |
3.3/10.4/16/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

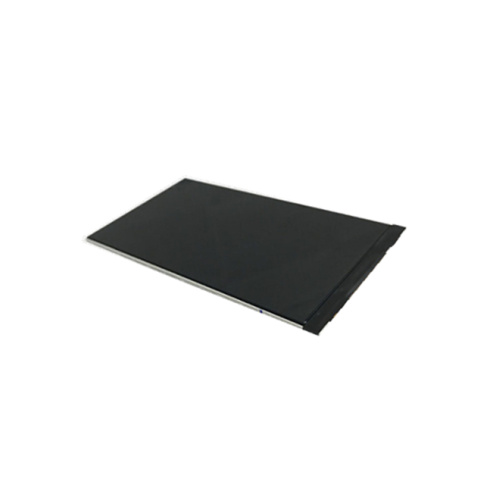

Product Picture:
