AM-1280800P5TZQW-T51H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-1280800P5TZQW-T51H is a 7.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20170221 which was released out on 2 21 2017, AM-1280800P5TZQW-T51H supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 149.76(W)×93.6(H) mm, outline size of 161(W)×107(H)×9.11(D) mm, viewing area size of 152.76(W)×96.6(H) mm, with surface treament of Hard coating. As a IPS, Normally Black, Transmissive LCM product, AM-1280800P5TZQW-T51H can provides 340 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. AM-1280800P5TZQW-T51H utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-1280800P5TZQW-T51H |
|
Manufacturer |
AMPIRE |
|
Screen Size |
7.0 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×800 (WXGA) 217PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
149.76 × 93.6 (H×V) |
|
Outline(mm) |
161 × 107 × 9.11 (H×V×D) |
|
Bezel Area(mm) |
152.76 × 96.6 (H×V) |
|
Treatment |
Hard coating |
|
Luminance |
340 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Response |
35 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
IPS, Normally Black, Transmissive |
|
Color Depth |
16.7M 50% NTSC |
|
Backlight |
3S7P WLED , 30K hours , With LED Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP |
|
Signal Type |
LVDS (2 ch, 8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

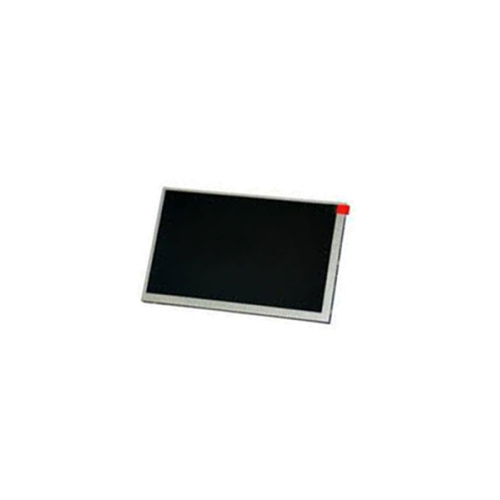

Product Picture:
