AM-800480RBTMQW-TA1H-A AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480RBTMQW-TA1H-A is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20140407 which was released out on 4 7 2014, AM-800480RBTMQW-TA1H-A supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×8.06(D) mm, viewing area size of 155.3(W)×94.3(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480RBTMQW-TA1H-A can provides 255 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, external backlight driver is additionally needed. AM-800480RBTMQW-TA1H-A utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800480RBTMQW-TA1H-A |
|
Brand |
AMPIRE |
|
Diagonal Size |
7.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] 133PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
152.4(H)×91.44(V) mm |
|
Outline Dim. |
165(H)×104.44(V) ×8.06(D) mm |
|
Bezel Area |
155.3(H)×94.3(V) mm |
|
Luminance |
255 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K |
|
Light Source |
WLED [3S10P] , 40K hours , W/O Driver |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

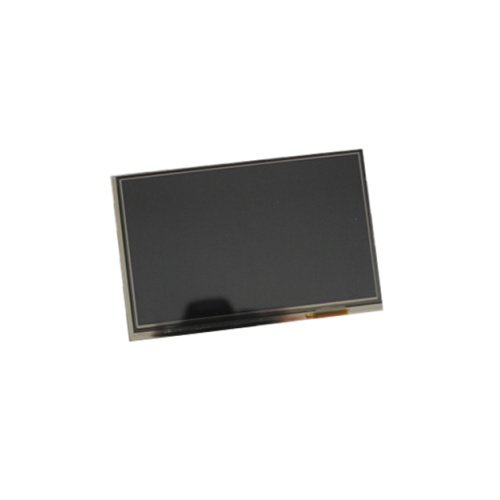

Product Picture:
