AM-1024600K5TMQW-T00H AMPIRE 7.0 inch TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Ampire Co., Ltd. (hereafter called AMPIRE) AM-1024600K5TMQW-T00H is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20150722 which was released out on 7 22 2015, AM-1024600K5TMQW-T00H supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 165.5(W)×103(H)×11.02(D) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-1024600K5TMQW-T00H can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. AM-1024600K5TMQW-T00H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	AM-1024600K5TMQW-T00H
Brand	AMPIRE
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1024(RGB)×600 [WSVGA] 169PPI
Configuration	RGB Vertical Stripe
Active Area	153.6(H)×90(V) mm
Outline Dim.	165.5(H)×103(V) ×11.02(D) mm
Luminance	400 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Response Time	20/20 (Typ.)(Tr/Td)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M
Light Source	WLED [5S3P] , 30K hours , With LED Driver
Weight	TBD
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface Type	LVDS (1 ch, 8-bit) , 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

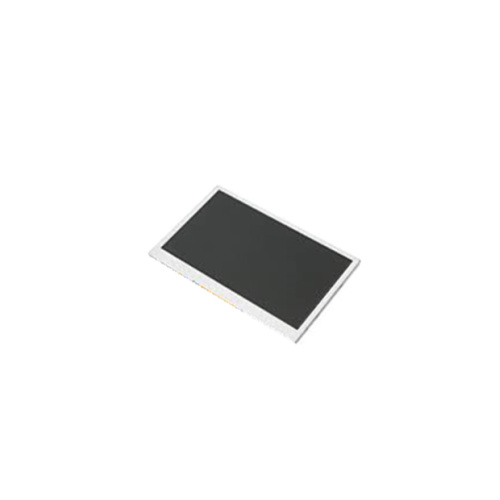

Product Picture:

AM-1024600K5TMQW-T00H
