AM-1280800P4TZQW-T11H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-1280800P4TZQW-T11H is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20171130 which was released out on 11 30 2017, AM-1280800P4TZQW-T11H supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 149.76(W)×93.6(H) mm, outline size of 162.3(W)×107.9(H)×12.3(D) mm, viewing area size of 152.76(W)×96.6(H) mm. As a SFT, Normally Black, Transmissive LCM product, AM-1280800P4TZQW-T11H can provides 850 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. AM-1280800P4TZQW-T11H utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-1280800P4TZQW-T11H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
7.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×800, WXGA, 217PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
149.76(W)×93.6(H) mm |
|
Bezel Opening |
152.76(W)×96.6(H) mm |
|
Outline Size |
162.3(W)×107.9(H) ×12.3(D) mm |
|
Brightness |
850 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Display Mode |
SFT, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
35 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 50% NTSC |
|
Lamp Type |
6S4P WLED , 50K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP |
|
Signal Interface |
LVDS (1 ch, 8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

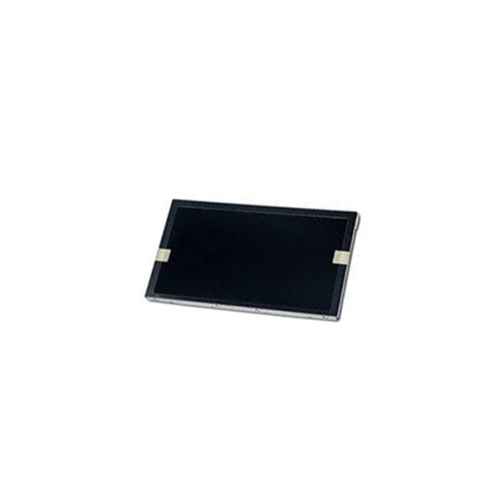

Product Picture:
