AM-800480RSTMQW-TAHH AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
The AM-800480RSTMQW-TAHH is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, With LED Driver , touch screen PCAP. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480RSTMQW-TAHH supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×7.61(D) mm, viewing area size of 155.3(W)×94.3(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480RSTMQW-TAHH can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. AM-800480RSTMQW-TAHH utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800480RSTMQW-TAHH |
|
Brand |
AMPIRE |
|
Diagonal Size |
7.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×480 [WVGA] 133PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
152.4(H)×91.44(V) mm |
|
Outline Dim. |
165(H)×104.44(V) ×7.61(D) mm |
|
Bezel Area |
155.3(H)×94.3(V) mm |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K |
|
Light Source |
WLED [3S10P] , 40K hours , With LED Driver |
|
Weight |
TBD |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |

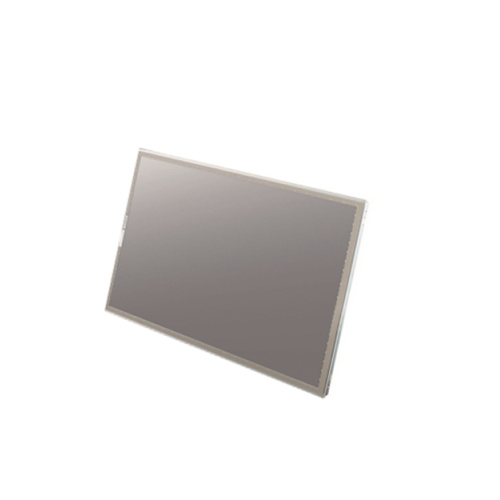

Product Picture:
