AM-800480STMQW-B0 AMPIRE 7.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480STMQW-B0 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20120927 which was released out on 9 27 2012, AM-800480STMQW-B0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×9.46(D) mm, viewing area size of 155.3(W)×94.30(H) mm, net weight of 135g (Typ.). As a TN, Normally White, Transmissive LCM product, AM-800480STMQW-B0 can provides 350 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 48% (NTSC). This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-800480STMQW-B0 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	AM-800480STMQW-B0
Brand	AMPIRE
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)×480 [WVGA] 133PPI
Configuration	RGB Vertical Stripe
Active Area	152.4(H)×91.44(V) mm
Outline Dim.	165(H)×104.44(V) ×9.46(D) mm
Bezel Area	155.3(H)×94.30(V) mm
Luminance	350 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	5/11 (Typ.)(Tr/Td)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 48% NTSC
Light Source	WLED [3S8P] , 20K hours , With LED Driver
Weight	135g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit) , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

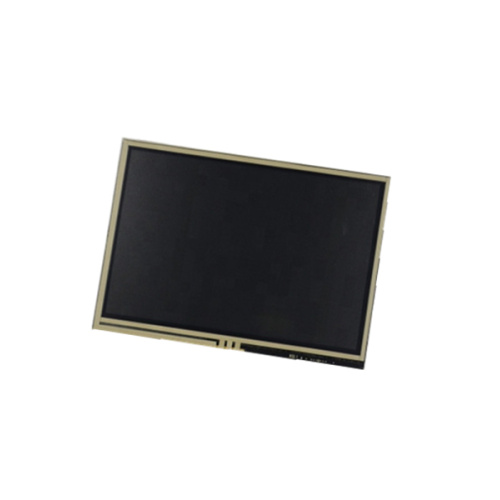

Product Picture:

AM-800480STMQW-B0
