AM-800480R3TMQW-B2H AMPIRE 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480R3TMQW-B2H is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20121003 which was released out on 9 3 2012, AM-800480R3TMQW-B2H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×7.06(D) mm, viewing area size of 155.3(W)×94.30(H) mm. As a TN, Normally White, Transmissive LCM product, AM-800480R3TMQW-B2H can provides 500 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. AM-800480R3TMQW-B2H utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480R3TMQW-B2H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
7.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 133PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
152.4(W)×91.44(H) mm |
|
Bezel Opening |
155.3(W)×94.30(H) mm |
|
Outline Size |
165(W)×104.44(H) ×7.06(D) mm |
|
Brightness |
500 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/60 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Display Colors |
262K |
|
Lamp Type |
3S10P WLED , 40K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Signal Interface |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

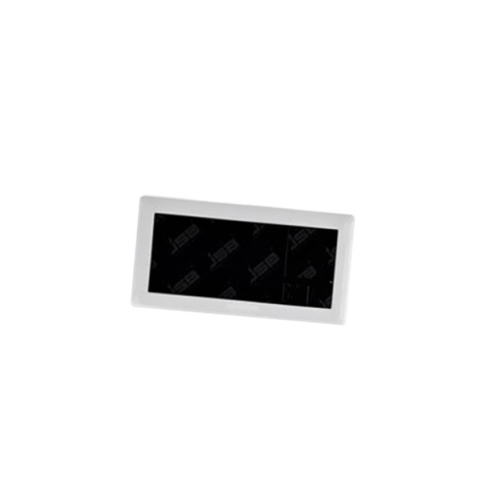

Product Picture:
