Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480STMQW-TW0 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , touch screen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-800480STMQW-TW0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104.44(H)×10.72(D) mm. As a TN, Normally White, Transmissive LCM product, AM-800480STMQW-TW0 can provides 280 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/11 (Typ.)(Tr/Td) ms., thus presenting a palette of 65K colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-800480STMQW-TW0 utilizes 8/9/16/18-bit 6800/8080 parallel as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-800480STMQW-TW0 |
|
Brand |
AMPIRE |
|
Diagonal Size |
7.0 inch |
|
Pixel Format |
800(RGB)×480 [WVGA] 133PPI |
|
Active Area |
152.4(H)×91.44(V) mm |
|
Luminance |
280 cd/m² (Typ.) |
|
View Direction |
6 o'clock |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Support Color |
65K |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
165(H)×104.44(V) ×10.72(D) mm |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
Response Time |
5/11 (Typ.)(Tr/Td) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Light Source |
WLED [3S8P] , 20K hours , With LED Driver |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
8/9/16/18-bit 6800/8080 parallel 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

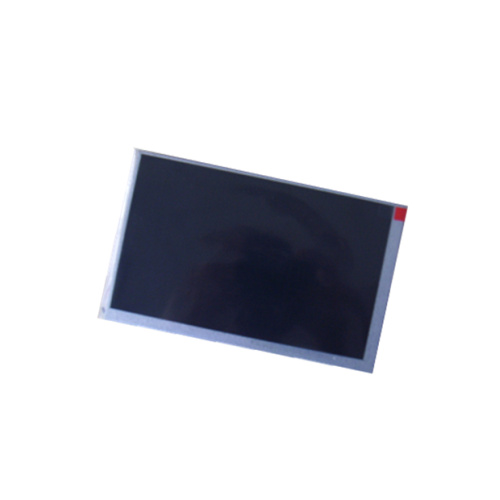

Product Picture:
