AM-800480ACTMQW-02H is a 6.5 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, without touch screen. This Ampire TFT-LCD is a 6.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140729 which was released out on 7 29 2014, AM-800480ACTMQW-02H supports display 800(RGB)×480 (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×76.704(H) mm, outline size of 155.2(W)×89.4(H) mm, viewing area size of 146.2(W)×79.504(H) mm, with surface treament of Antiglare, net weight of 126.9g (Typ.). As a TN, Normally White, Transmissive LCM product, AM-800480ACTMQW-02H can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-800480ACTMQW-02H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 49 pins FPC with power supply voltage of 3.3/10.4/15.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.


Model

AM-800480ACTMQW-02H

Brand

AMPIRE

Diagonal Size

6.5 inch

Pixel Format

800(RGB)×480  [WVGA]  145PPI

Active Area

143.4(H)×76.704(V) mm

Bezel Area

146.2(H)×79.504(V) mm

Luminance

500 cd/m² (Typ.)

Viewing Angle

70/70/50/70 (Typ.)(CR≥10)

Support Color

16.7M

Weight

126.9g (Typ.)

Frame Rate

60Hz

Type

a-Si TFT-LCD , LCM

Configuration

RGB Vertical Stripe

Outline Dim.

155.2(H)×89.4(V) mm

Treatment

Antiglare

Contrast Ratio

500:1 (Typ.) (TM)

Response Time

10/15 (Typ.)(Tr/Td)

Operating Mode

TN, Normally White, Transmissive

Light Source

WLED  [3S8P] , 20K hours , W/O Driver

Touch Panel

Without

Interface Type

Parallel RGB (1 ch, 8-bit) 49 pins FPC

Power Supply

3.3/10.4/15.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)

Environment

Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C

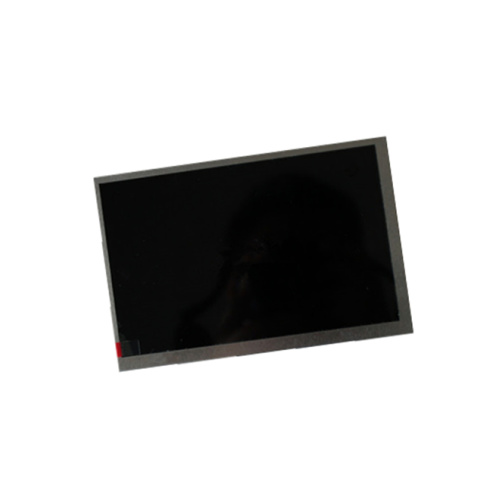

Product Picture:
