AM-640480G2TNQW-TW2H AMPIRE 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-640480G2TNQW-TW2H is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20140416 which was released out on 4 16 2014, AM-640480G2TNQW-TW2H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×98.43(H)×10.2(D) mm, viewing area size of 118.0(W)×89.2(H) mm. As a TN, Normally White, Transmissive LCM product, AM-640480G2TNQW-TW2H can provides 400 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 50 (Typ.)(Tr+Td) ms., thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-640480G2TNQW-TW2H utilizes 8/9/16/18-bit 6800/8080 parallel as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-640480G2TNQW-TW2H |
|
Brand |
AMPIRE |
|
Diagonal Size |
5.7 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
640(RGB)×480 [VGA] 141PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
115.2(H)×86.4(V) mm |
|
Outline Dim. |
127(H)×98.43(V) ×10.2(D) mm |
|
Bezel Area |
118.0(H)×89.2(V) mm |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
250:1 (Typ.) (TM) |
|
View Direction |
12 o'clock |
|
Response Time |
50 (Typ.)(Tr+Td) |
|
Viewing Angle |
70/70/50/50 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 50% NTSC |
|
Light Source |
WLED [3S7P] , W/O Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
8/9/16/18-bit 6800/8080 parallel , 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

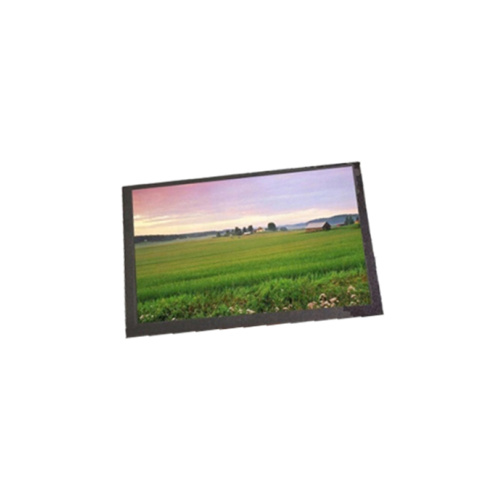

Product Picture:
