AM-640480GFTNQW-T01H-A AMPIRE 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-640480GFTNQW-T01H-A is a 5.7 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20130514 which was released out on 5 14 2013, AM-640480GFTNQW-T01H-A supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×98.43(H)×9.24(D) mm, viewing area size of 118.2(W)×89.2(H) mm. As a TN, Normally White, Transmissive LCM product, AM-640480GFTNQW-T01H-A can provides 430 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 49% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. AM-640480GFTNQW-T01H-A utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-640480GFTNQW-T01H-A |
|
Panel Brand |
AMPIRE |
|
Panel Size |
5.7" |
|
Resolution |
640(RGB)×480, VGA, 141PPI |
|
Display Area |
115.2(W)×86.4(H) mm |
|
Outline Size |
127(W)×98.43(H) ×9.24(D) mm |
|
Brightness |
430 cd/m² (Typ.) |
|
Viewing Angle |
70/70/50/50 (Typ.)(CR≥10) |
|
Display Colors |
262K 49% NTSC |
|
Frequency |
60Hz |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
118.2(W)×89.2(H) mm |
|
Contrast Ratio |
250:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
50 (Typ.)(Tr+Td) |
|
Lamp Type |
WLED , With LED Driver |
|
Touch Screen |
PCAP |
|
Signal Interface |
TTL (1 ch, 6-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

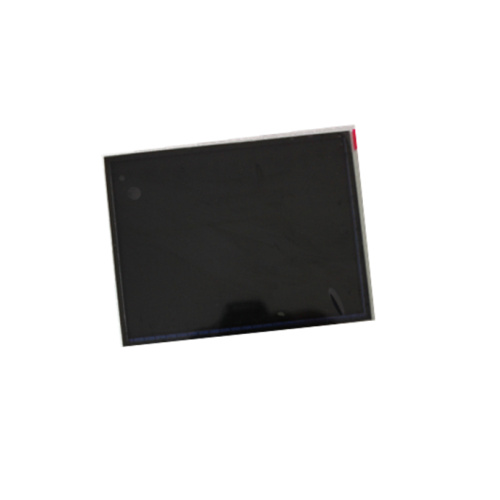

Product Picture:
