AM-640480GSTMQW-T00H AMPIRE 5.7 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-640480GSTMQW-T00H is a 5.7 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20090409 which was released out on 4 9 2009, AM-640480GSTMQW-T00H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×14.7(D) mm, viewing area size of 118.2(W)×89.4(H) mm. As a TN, Normally White, Transmissive LCM product, AM-640480GSTMQW-T00H can provides 320 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 48% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-640480GSTMQW-T00H utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-640480GSTMQW-T00H |
|
Manufacturer |
AMPIRE |
|
Screen Size |
5.7 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
640(RGB)×480 (VGA) 141PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
115.2 × 86.4 (H×V) |
|
Outline(mm) |
144 × 104.6 × 14.7 (H×V×D) |
|
Bezel Area(mm) |
118.2 × 89.4 (H×V) |
|
Luminance |
320 cd/m² (Typ.) |
|
Contrast Ratio |
250 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/50 (Typ.)(CR≥10) |
|
Response |
50 (Typ.)(Tr+Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K 48% NTSC |
|
Backlight |
3S7P WLED , 20K hours , With LED Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
4-wire Resistive Touch |
|
Signal Type |
Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

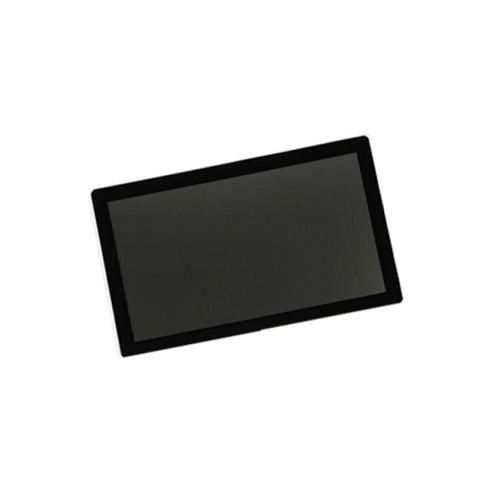

Product Picture:
