AM-640480G2TNQW-02H AMPIRE 5.7 inch TFT-LCD
  • AM-640480G2TNQW-02H AMPIRE 5.7 inch TFT-LCD
AM-640480G2TNQW-02H AMPIRE 5.7 inch TFT-LCD

AM-640480G2TNQW-02H AMPIRE 5.7 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,SHENZHEN
Product Description
Product Description



Ampire Co., Ltd. (hereafter called AMPIRE) AM-640480G2TNQW-02H is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.  This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20080711 which was released out on 7 11 2008, AM-640480G2TNQW-02H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×98.43(H)×6.9(D) mm, viewing area size of 118.0(W)×89.2(H) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-640480G2TNQW-02H can provides 250 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. AM-640480G2TNQW-02H utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.



We are able to offer AD board for this display to support VGA video input.


Model

AM-640480G2TNQW-02H

Brand

AMPIRE

Diagonal Size

5.7 inch

Pixel Format

640(RGB)×480  [VGA]  141PPI

Active Area

115.2(H)×86.4(V) mm

Bezel Area

118.0(H)×89.2(V) mm

Luminance

250 cd/m² (Typ.)

View Direction

12 o'clock

Viewing Angle

70/70/50/50 (Typ.)(CR≥10)

Support Color

262K   50% NTSC

Frame Rate

60Hz

Type

a-Si TFT-LCD , LCM

Configuration

RGB Vertical Stripe

Outline Dim.

127(H)×98.43(V) ×6.9(D) mm

Treatment

Antiglare, Hard coating (3H)

Contrast Ratio

250:1 (Typ.) (TM)

Response Time

50 (Typ.)(Tr+Td)

Operating Mode

TN, Normally White, Transmissive

Light Source

WLED , With LED Driver

Touch Panel

Without

Interface Type

Parallel RGB (1 ch, 6-bit) 40 pins Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

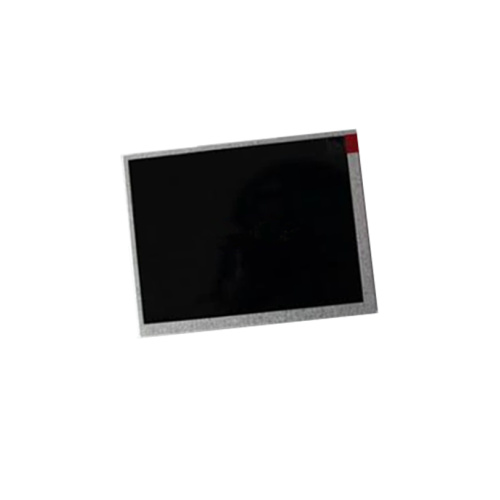

Product Picture:

AM-640480G2TNQW-02H
