AM-640480G2TNQW-00H-F AMPIRE 5.7 inch TFT-LCD
  • AM-640480G2TNQW-00H-F AMPIRE 5.7 inch TFT-LCD
AM-640480G2TNQW-00H-F AMPIRE 5.7 inch TFT-LCD

AM-640480G2TNQW-00H-F AMPIRE 5.7 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,SHENZHEN
Product Description
Product Description


AM-640480G2TNQW-00H-F is a 5.7 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, With LED Driver, without touch screen. This Ampire TFT-LCD is a 5.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20100913 which was released out on 9 13 2010, AM-640480G2TNQW-00H-F supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 127(W)×98.43(H)×6.9(D) mm, viewing area size of 118.0(W)×89.2(H) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM-640480G2TNQW-00H-F can provides 500 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AM-640480G2TNQW-00H-F utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input.

Panel Model

AM-640480G2TNQW-00H-F

Panel Brand

AMPIRE

Panel Size

5.7"

Resolution

640(RGB)×480, VGA, 141PPI

Display Area

115.2(W)×86.4(H) mm

Outline Size

127(W)×98.43(H) ×6.9(D) mm

Brightness

500 cd/m² (Typ.)

Viewing Angle

70/70/50/50 (Typ.)(CR≥10)

Best View on

12 o'clock

Display Colors

262K   50% NTSC

Frequency

60Hz

Panel Type

a-Si TFT-LCD , LCM

Pixel Format

RGB Vertical Stripe

Bezel Opening

118.0(W)×89.2(H) mm

Surface

Antiglare, Hard coating (3H)

Contrast Ratio

250:1 (Typ.) (TM)

Display Mode

TN, Normally White, Transmissive

Response Time

50 (Typ.)(Tr+Td)

Lamp Type

WLED , 20K hours , With LED Driver

Touch Screen

Without

Signal Interface

Parallel RGB (1 ch, 6-bit) , 40 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

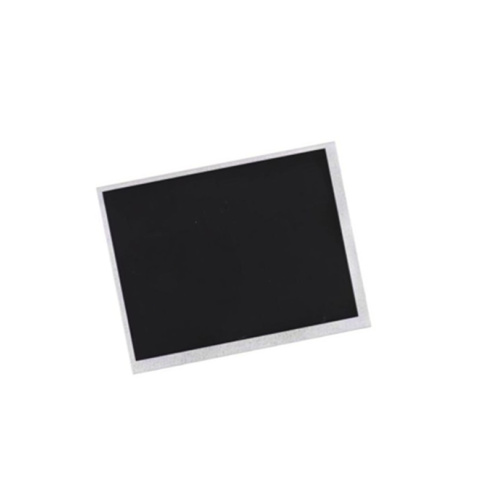

Product Picture:

AM-640480G2TNQW-00H-F
