Product Description
Product Description

AM-800480BCTMQW-T00H is a 5.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20180820 which was released out on 8 20 2018, AM-800480BCTMQW-T00H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 129.9(W)×86.7(H)×7.18(D) mm. As a TN, Normally White, Transmissive LCM product, AM-800480BCTMQW-T00H can provides 340 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-800480BCTMQW-T00H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input.


Panel Model

AM-800480BCTMQW-T00H

Panel Brand

AMPIRE

Panel Size

5.0"

Panel Type

a-Si TFT-LCD, LCM

Resolution

800(RGB)×480, WVGA, 188PPI

Pixel Format

RGB Vertical Stripe

Display Area

108(W)×64.8(H) mm

Outline Size

129.9(W)×86.7(H) ×7.18(D) mm

Brightness

340 cd/m² (Typ.)

Contrast Ratio

600:1 (Typ.) (TM)

Viewing Angle

75/75/60/70 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

6 o'clock

Response Time

4/12 (Typ.)(Tr/Td)

Display Colors

16.7M   52% NTSC

Lamp Type

6S2P WLED , 50K hours , Without Driver

Frequency

60Hz

Touch Screen

PCAP

Signal Interface

Parallel RGB (1 ch, 8-bit) , 40 pins FPC

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

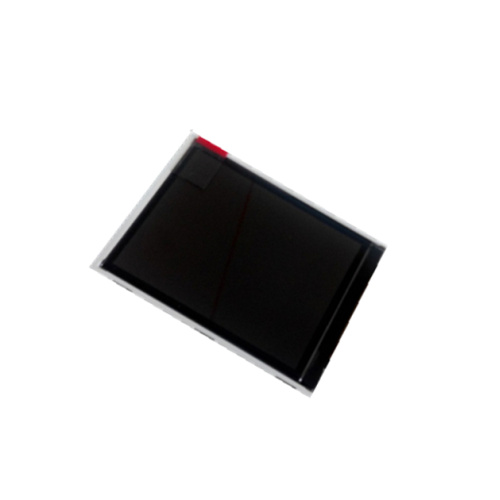

Product Picture:

AM-800480BCTMQW-T00H

Related Product

Video/VGA/DVI/HDMI Controller
