AM-800480LTMQW-TW0H AMPIRE 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-800480LTMQW-TW0H is a 5.0 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20091216 which was released out on 12 16 2009, AM-800480LTMQW-TW0H supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm, outline size of 118.5(W)×77.1(H)×7.58(D) mm, viewing area size of 110.6(W)×67.4(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-800480LTMQW-TW0H can provides 360 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 52% (NTSC). This product adopted 3S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-800480LTMQW-TW0H utilizes CPU as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480LTMQW-TW0H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
5.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 188PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
108(W)×64.8(H) mm |
|
Bezel Opening |
110.6(W)×67.4(H) mm |
|
Outline Size |
118.5(W)×77.1(H) ×7.58(D) mm |
|
Brightness |
360 cd/m² (Typ.) |
|
Contrast Ratio |
250:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
15/35 (Typ.)(Tr/Td) |
|
Display Colors |
262K 52% NTSC |
|
Lamp Type |
3S6P WLED , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
4-wire Resistive Touch |
|
Panel Weight |
TBD |
|
Signal Interface |
CPU , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

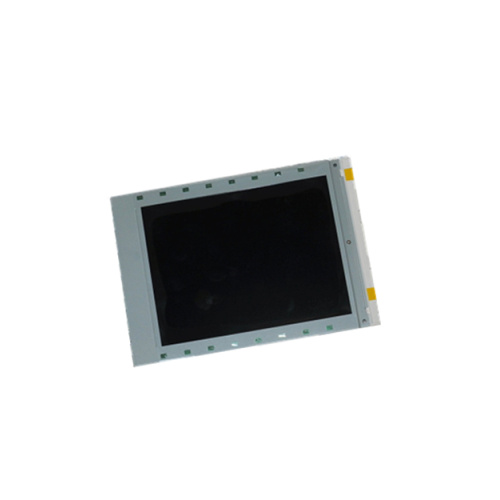

Product Picture:
