AM-800480BDTZQW-T01H AMPIRE 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-800480BDTZQW-T01H is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20191128 which was released out on 11 28 2019, AM-800480BDTZQW-T01H supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 114.4(W)×76.1(H)×4.3(D) mm. As a Normally Black, Transmissive LCM product, AM-800480BDTZQW-T01H can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.2M colors. This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AM-800480BDTZQW-T01H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AM-800480BDTZQW-T01H |
|
Panel Brand |
AMPIRE |
|
Panel Size |
4.3" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×480, WVGA, 216PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
95.04(W)×53.856(H) mm |
|
Outline Size |
114.4(W)×76.1(H) ×4.3(D) mm |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Display Mode |
Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
40 (Typ.)(Tr+Td) |
|
Display Colors |
16.2M |
|
Lamp Type |
6S2P WLED , 50K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 85 °C |

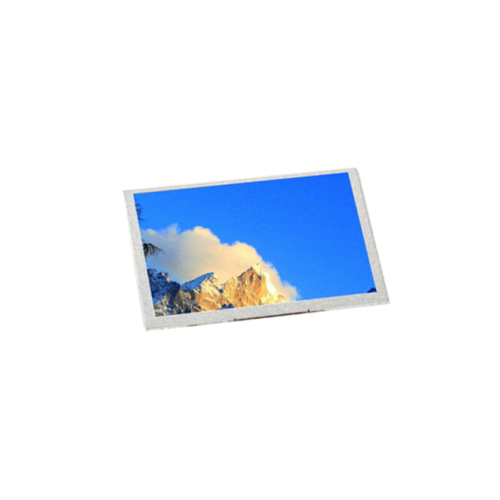

Product Picture:
