AM-480272Q2TZQW-T60H-I AMPIRE 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Ampire Co., Ltd. (hereafter called AMPIRE) AM-480272Q2TZQW-T60H-I is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP. This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of 20150518 which was released out on 5 18 2015, AM-480272Q2TZQW-T60H-I supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×8.74(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H). As a ASV, Normally Black, Transflective LCM product, AM-480272Q2TZQW-T60H-I can provides 425 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. AM-480272Q2TZQW-T60H-I utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-480272Q2TZQW-T60H-I |
|
Brand |
AMPIRE |
|
Diagonal Size |
4.3 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
480(RGB)×272 [WQVGA] 128PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
95.04(H)×53.856(V) mm |
|
Outline Dim. |
105.5(H)×67.2(V) ×8.74(D) mm |
|
Treatment |
Glare (Haze 0%), Hard coating (3H) |
|
Luminance |
425 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
35 (Typ.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Operating Mode |
ASV, Normally Black, Transflective |
|
Support Color |
262K |
|
Light Source |
WLED [7S1P] , 30K hours , With LED Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

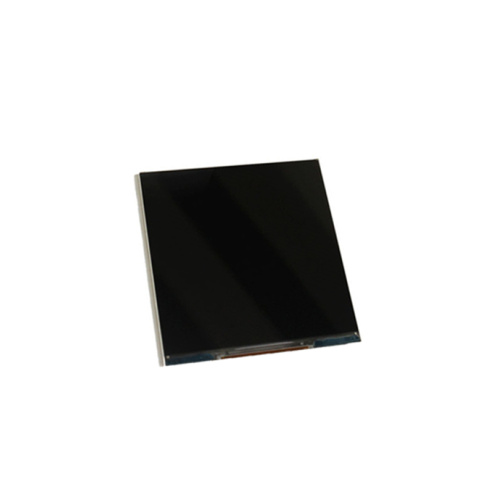

Product Picture:
