AM-480272MMTMQW-T30H AMPIRE 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-480272MMTMQW-T30H is a 4.3 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140626 which was released out on 6 26 2014, AM-480272MMTMQW-T30H supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×4.88(D) mm. As a TN, Normally White, Transmissive LCM product, AM-480272MMTMQW-T30H can provides 425 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8/17 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-480272MMTMQW-T30H utilizes TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-480272MMTMQW-T30H |
|
Manufacturer |
AMPIRE |
|
Screen Size |
4.3 inch |
|
Pixel Number |
480(RGB)×272 (WQVGA) 128PPI |
|
Active Area(mm) |
95.04 × 53.856 (H×V) |
|
Luminance |
425 (Typ.)(cd/m²) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Color Depth |
16.7M |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
105.5 × 67.2 × 4.88 (H×V×D) |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
8/17 (Typ.)(Tr/Td) ms |
|
Backlight |
6S2P WLED , No Driver |
|
Touchscreen |
PCAP |
|
Signal Type |
TTL (1 ch, 8-bit) , 40 pins FPC |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

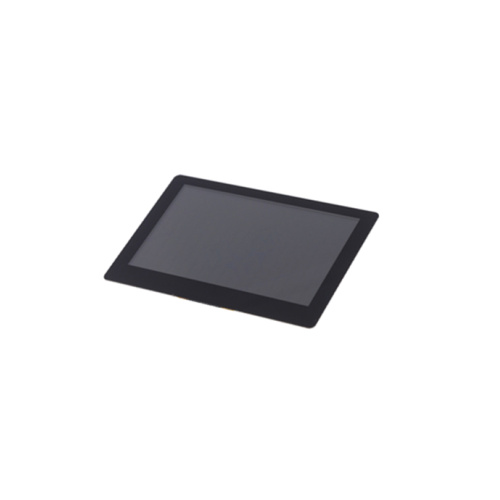

Product Picture:
