AM-480272HBTMQW-T01H AMPIRE 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
The AM-480272HBTMQW-T01H is a 4.3 inch diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, touch screen PCAP. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -30 ~ 80°C .This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM-480272HBTMQW-T01H supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×7.99(D) mm, viewing area size of 98.7(W)×57.5(H) mm. As a TN, Normally White, Transmissive LCM product, AM-480272HBTMQW-T01H can provides 415 cd/m² display brightness 350:1 transimissive contrast ratio, 65/65/45/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-480272HBTMQW-T01H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM-480272HBTMQW-T01H |
|
Brand |
AMPIRE |
|
Diagonal Size |
4.3 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
480(RGB)×272 [WQVGA] 128PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
95.04(H)×53.856(V) mm |
|
Outline Dim. |
105.5(H)×67.2(V) ×7.99(D) mm |
|
Bezel Area |
98.7(H)×57.5(V) mm |
|
Luminance |
415 cd/m² (Typ.) |
|
Contrast Ratio |
350:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
40 (Typ.)(Tr+Td) |
|
Viewing Angle |
65/65/45/45 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
16.7M |
|
Light Source |
WLED [7S1P] , 20K hours , W/O Driver |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP |
|
Interface Type |
Parallel RGB (1 ch, 8-bit) , 54 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 80 °C |

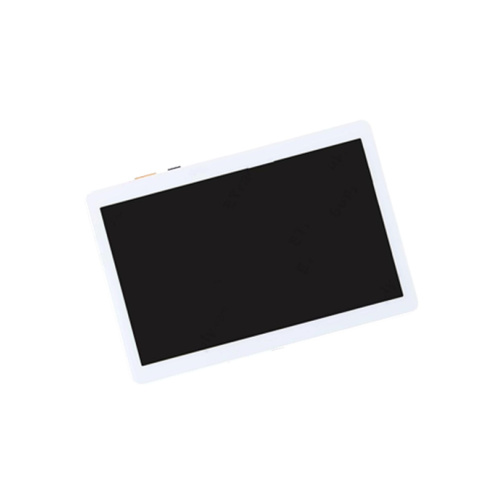

Product Picture:
