AM-480272HBTMQW-T01H-L AMPIRE 4.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM-480272HBTMQW-T01H-L is a 4.3 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen PCAP. This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20120613 which was released out on 6 13 2012, AM-480272HBTMQW-T01H-L supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×7.99(D) mm, viewing area size of 98.7(W)×57.5(H) mm. As a TN, Normally White, Transmissive LCM product, AM-480272HBTMQW-T01H-L can provides 250 cd/m² display brightness 350:1 transimissive contrast ratio, 65/65/45/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM-480272HBTMQW-T01H-L utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AM-480272HBTMQW-T01H-L |
|
Manufacturer |
AMPIRE |
|
Screen Size |
4.3 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
480(RGB)×272 (WQVGA) 128PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
95.04 × 53.856 (H×V) |
|
Outline(mm) |
105.5 × 67.2 × 7.99 (H×V×D) |
|
Bezel Area(mm) |
98.7 × 57.5 (H×V) |
|
Luminance |
250 cd/m² (Typ.) |
|
Contrast Ratio |
350 : 1 (Typ.) (TM) |
|
Viewing Angle |
65/65/45/45 (Typ.)(CR≥10) |
|
Response |
40 (Typ.)(Tr+Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M |
|
Backlight |
7S1P WLED , 20K hours , No Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP |
|
Signal Type |
Parallel RGB (1 ch, 8-bit) , 54 pins FPC |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

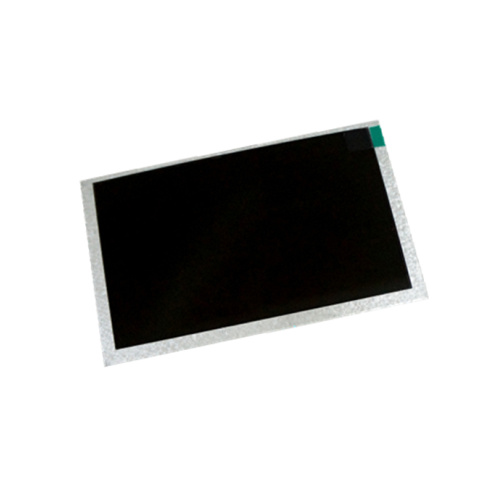

Product Picture:
