AM480272H3TMQW-TW3H AMPIRE 4.3 inch TFT-LCD
  • AM480272H3TMQW-TW3H AMPIRE 4.3 inch TFT-LCD
AM480272H3TMQW-TW3H AMPIRE 4.3 inch TFT-LCD

AM480272H3TMQW-TW3H AMPIRE 4.3 inch TFT-LCD

Payment Type:
T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Land, Air
Port:
HK, SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: TAIWAN
Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,ROHS,ISO9001
Transportation: Ocean,Land,Air
Port: HK,SHENZHEN
Product Description
Product Description


The AM480272H3TMQW-TW3H is a 4.3 inch diagonal a-Si TFT-LCD display panel product from Ampire Co., Ltd. (hereafter called AMPIRE), with an integral WLED backlight system, without backlight driver, touch screen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AM480272H3TMQW-TW3H supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×7.91(D) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM480272H3TMQW-TW3H can provides 400 cd/m² display brightness 250:1 transimissive contrast ratio, 70/70/35/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/35 (Typ.)(Tr/Td) ms., thus presenting a palette of 65K/262K colors, also with performance of color gamut 52% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AM480272H3TMQW-TW3H utilizes 8/9/16/18-bit 6800/8080 parallel as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.


We are able to offer AD board for this display to support VGA video input.

Model

AM480272H3TMQW-TW3H

Brand

AMPIRE

Diagonal Size

4.3 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

480(RGB)×272  [WQVGA]  128PPI

Configuration

RGB Vertical Stripe

Active Area

95.04(H)×53.856(V) mm

Outline Dim.

105.5(H)×67.2(V) ×7.91(D) mm

Luminance

400 cd/m² (Typ.)

Contrast Ratio

250:1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

15/35 (Typ.)(Tr/Td)

Viewing Angle

70/70/35/55 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

65K/262K   52% NTSC

Light Source

WLED  [7S1P] , 20K hours , W/O Driver

Weight

TBD

Frame Rate

60Hz

Touch Panel

4-wire Resistive Touch

Interface Type

8/9/16/18-bit 6800/8080 parallel , 40 pins Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

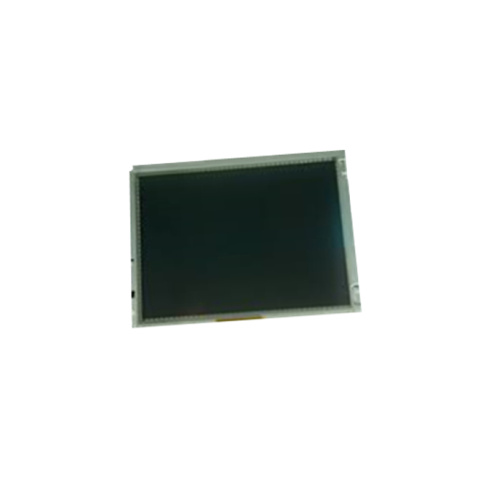

Product Picture:

AM480272H3TMQW-TW3H
