Product Description
Product Description

AM-480272M3TMQW-T00H is a 4.3 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20121008 which was released out on 10 8 2012, AM-480272M3TMQW-T00H supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×4.4(D) mm. As a TN, Normally White, Transmissive LCM product, AM-480272M3TMQW-T00H can provides 280 cd/m² display brightness 450:1 transimissive contrast ratio, 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-480272M3TMQW-T00H utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.


Model

AM-480272M3TMQW-T00H

Brand

AMPIRE

Diagonal Size

4.3 inch

Pixel Format

480(RGB)×272  [WQVGA]  128PPI

Active Area

95.04(H)×53.856(V) mm

Luminance

280 cd/m² (Typ.)

View Direction

6 o'clock

Viewing Angle

70/70/70/50 (Typ.)(CR≥10)

Support Color

16.7M   50% NTSC

Frame Rate

60Hz

Type

a-Si TFT-LCD , LCM

Configuration

RGB Vertical Stripe

Outline Dim.

105.5(H)×67.2(V) ×4.4(D) mm

Contrast Ratio

450:1 (Typ.) (TM)

Response Time

20 (Typ.)(Tr+Td)

Operating Mode

TN, Normally White, Transmissive

Light Source

WLED  [5S2P] , W/O Driver

Touch Panel

4-wire Resistive Touch

Interface Type

Parallel RGB (1 ch, 8-bit) 40 pins FPC

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

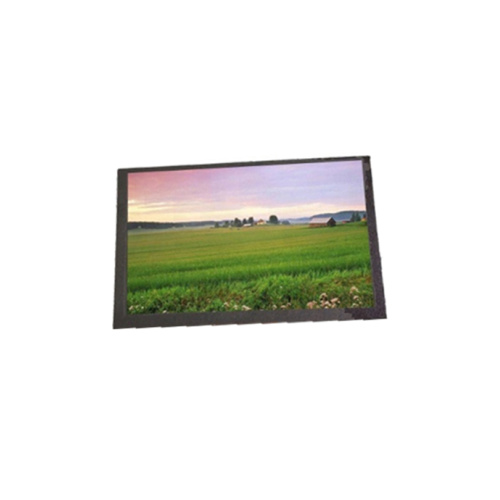

Product Picture:

AM-480272M3TMQW-T00H

Related Product

Video/VGA/DVI/HDMI Controller
