AM320240L8TNQW-TB4H-A (Alias: AM-320240L8TNQW-TB4H-A) is a 3.5 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20150130 which was released out on 1 30 2015, AM320240L8TNQW-TB4H-A supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 77.8(W)×64.5(H)×7.25(D) mm, viewing area size of 73.7(W)×55.3(H) mm, net weight of 52.0g. As a TN, Normally White, Transmissive LCM product, AM320240L8TNQW-TB4H-A can provides 350 cd/m² display brightness 300:1 transimissive contrast ratio, 70/70/35/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr+Td) ms., thus presenting a palette of 65K/262K colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. AM320240L8TNQW-TB4H-A utilizes 16-bit 8080 parallel as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model

AM320240L8TNQW-TB4H-A

Panel Brand

AMPIRE

Panel Size

3.5"

Panel Type

a-Si TFT-LCD, LCM

Resolution

320(RGB)×240, QVGA, 115PPI

Pixel Format

RGB Vertical Stripe

Display Area

70.08(W)×52.56(H) mm

Bezel Opening

73.7(W)×55.3(H) mm

Outline Size

77.8(W)×64.5(H) ×7.25(D) mm

Brightness

350 cd/m² (Typ.)

Contrast Ratio

300:1 (Typ.) (TM)

Viewing Angle

70/70/35/55 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Response Time

25 (Typ.)(Tr+Td)

Display Colors

65K/262K

Lamp Type

3S2P WLED , 10K hours , Without Driver

Frequency

60Hz

Touch Screen

4-wire Resistive Touch

Panel Weight

52.0g

Signal Interface

16-bit 8080 parallel , 40 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

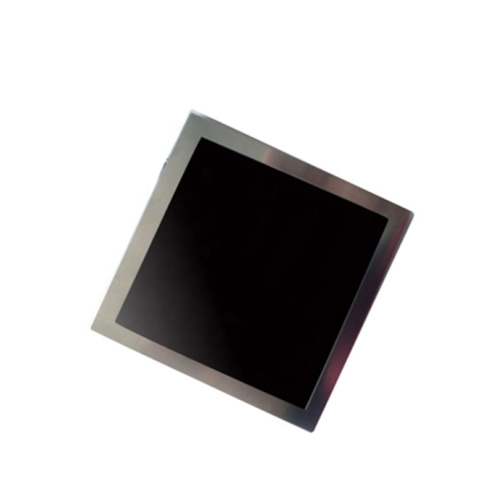

Product Picture:
