AM320240L6TMQW-TB0H AMPIRE 3.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AM320240L6TMQW-TB0H is a 3.5 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20071011 which was released out on 10 11 2007, AM320240L6TMQW-TB0H supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 117.4(W)×77.8(H)×4.6(D) mm, viewing area size of 73.73(W)×55.3(H) mm, with surface treament of Antiglare, Hard coating (3H). As a TN, Normally White, Transmissive LCM product, AM320240L6TMQW-TB0H can provides 235 cd/m² display brightness 300:1 transimissive contrast ratio, 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM320240L6TMQW-TB0H utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AM320240L6TMQW-TB0H |
|
Brand |
AMPIRE |
|
Diagonal Size |
3.5 inch |
|
Pixel Format |
320(RGB)×240 [QVGA] 115PPI |
|
Active Area |
70.08(H)×52.56(V) mm |
|
Bezel Area |
73.73(H)×55.3(V) mm |
|
Luminance |
235 cd/m² (Typ.) |
|
View Direction |
6 o'clock |
|
Viewing Angle |
45/45/15/35 (Typ.)(CR≥10) |
|
Support Color |
16.7M |
|
Frame Rate |
60Hz |
|
Type |
a-Si TFT-LCD , LCM |
|
Configuration |
RGB Vertical Stripe |
|
Outline Dim. |
117.4(H)×77.8(V) ×4.6(D) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
300:1 (Typ.) (TM) |
|
Response Time |
50 (Typ.)(Tr+Td) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Light Source |
WLED [3S2P] , W/O Driver |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
Parallel RGB (1 ch, 8-bit) + SPI 60 pins FPC |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

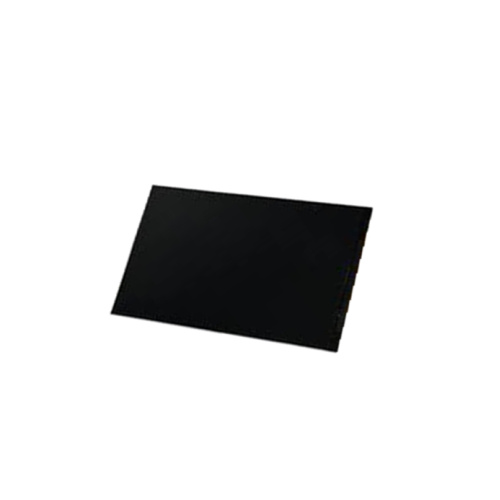

Product Picture:
