G156HAT01.4 15.6 Inch AUO TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
G156HAT01.4 is a 15.6 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, touchscreen PCAP, Air Bonding. This AUO TFT-LCD is a 15.6 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G156HAT01.4 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm. As a AHVA, Normally Black, Transmissive LCM product, G156HAT01.4 can provides 420 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours. G156HAT01.4 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
G156HAT01.4 |
|
Brand |
AUO |
|
Diagonal Size |
15.6" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1080, FHD 141PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
344.16(W)×193.59(H) mm |
|
Luminance |
420 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Operating Mode |
AHVA, Normally Black, Transmissive |
|
Support Color |
16.7M 72% NTSC |
|
Light Source |
WLED , 50K hours |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP, Air Bonding |
|
Interface Type |
LVDS (2 ch, 8-bit) Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C - |

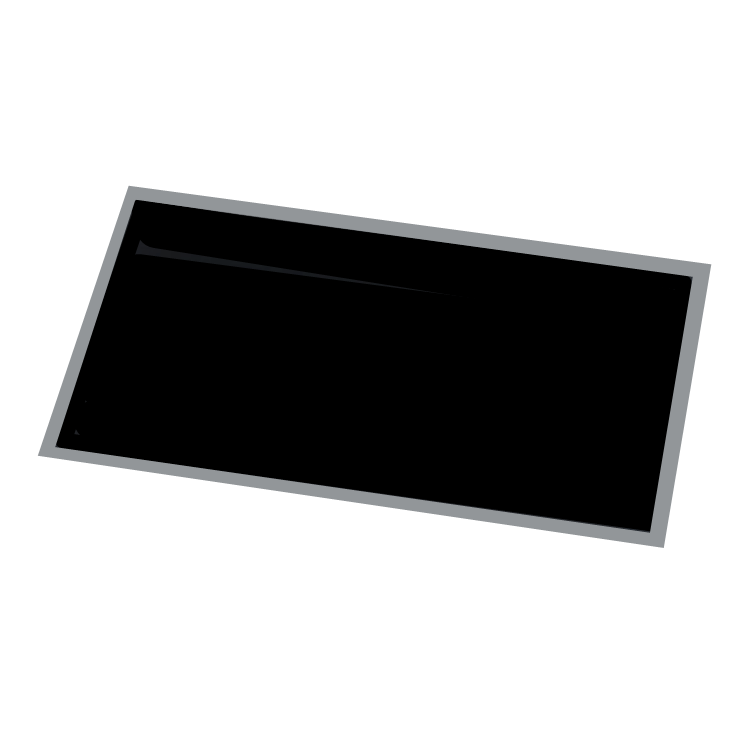

Product Picture:
