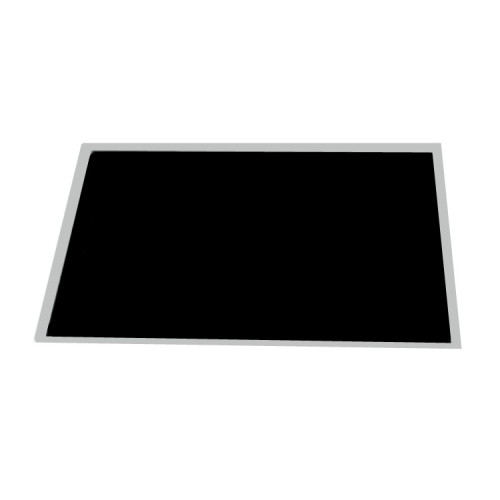

G270ZAN01.1 27.0 Inch AUO TFT-LCD

$25.00

1-99 Piece/Pieces
$20.00

≥100 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000 pcs
Supply Ability:	1000 pcs
Payment Type:	Paypal
Incoterm:	EXW
Certificate:	CE, ROHS
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Product Description

This AUO TFT-LCD is a 27.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G270ZAN01.1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.16(W)×335.34(H) mm, outline size of 630(W)×368.2(H)×23.4(D) mm, viewing area size of 602.0(W)×340.4(H) mm, with surface treament of Antiglare, net weight of 3.40Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G270ZAN01.1 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/25 (Typ./Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 94% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G270ZAN01.1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model P/N	G270ZAN01.1
Brand	AUO
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 163PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.16(W)×335.34(H) mm
Bezel Opening	602.0(W)×340.4(H) mm
Outline Size	630(W)×368.2(H) ×23.4(D) mm
Surface	Antiglare
Brightness	800 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry
Response Time	16/25 (Typ./Max.)(Tr+Td)
Display Colors	1.07B 94% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	3.40Kgs (Typ.)
Signal Interface	V-by-One 8 lane , 51 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
