G101EAN01.0 10.1 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

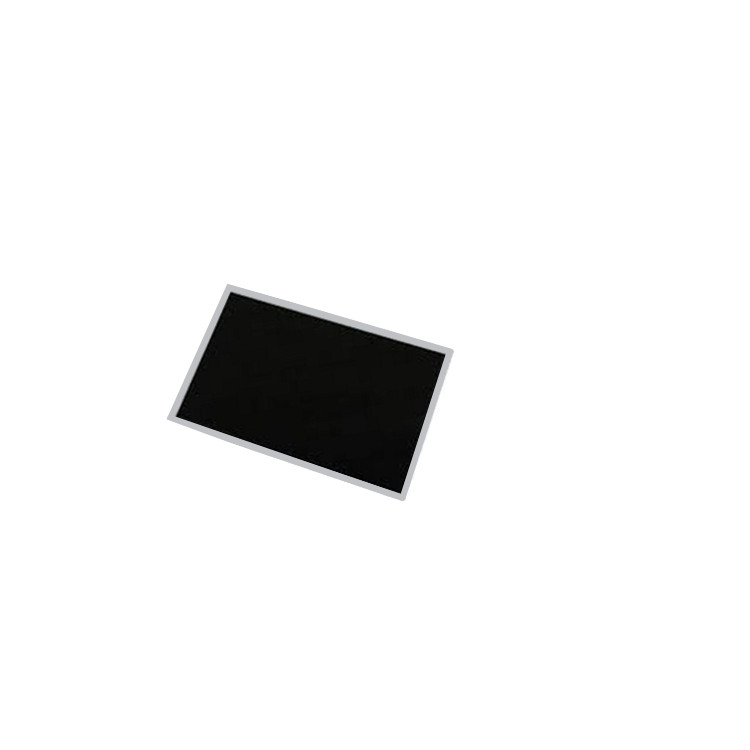

AU Optronics Corp. (hereafter called AUO) G101EAN01.0 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This AUO TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G101EAN01.0 supports display 800(RGB)×1280 (WXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 135.36(W)×216.576(H) mm, outline size of 150.3(W)×232.43(H)×4.8(D) mm, with surface treament of Antiglare, Antireflection, net weight of 161g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G101EAN01.0 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. G101EAN01.0 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	G101EAN01.0
Panel Brand	AUO
Panel Size	10.1"
Resolution	800(RGB)×1280, WXGA, 150PPI
Display Area	135.36(W)×216.576(H) mm
Outline Size	150.3(W)×232.43(H) ×4.8(D) mm
Brightness	350 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 60% NTSC
Frequency	60Hz
Weight	161g (Max.)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Surface	Antiglare, Antireflection
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	AHVA, Normally Black, Transmissive
Response Time	30 (Typ.)(Tr+Td)
Lamp Type	WLED , 15K hours , Without Driver
Touch Screen	Without
Signal Interface	MIPI (4 data lanes) , 39 pins Connector
Input Voltage	1.8/3.3V (Typ.)(VDDIO/VDD)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
