A070VTN06.4 7.0 inch AUO TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | HK,Shenzhen |
AU Optronics Corp. (hereafter called AUO) A070VTN06.4 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This AUO TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. A070VTN06.4 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×5.9(D) mm, viewing area size of 157.1(W)×90.92(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150±15g. As a TN, Normally White, Transmissive LCM product, A070VTN06.4 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/55/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. A070VTN06.4 utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.4/16/-7V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
| Model Name | A070VTN06.4 |
| Manufacturer | AUO |
| Screen Size | 7.0 inch |
| Pixel Number | 800(RGB)×480 (WVGA) 134PPI |
| Active Area(mm) | 154.08 × 85.92 (H×V) |
| Bezel Area(mm) | 157.1 × 90.92 (H×V) |
| Luminance | 500 (Typ.)(cd/m²) |
| Viewing Angle | 75/75/55/65 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K/16.7M 50% NTSC |
| Mass | 150±15g |
| Refresh Rate | 60Hz |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 164.9 × 100 × 5.9 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 25 (Typ.)(Tr+Td) ms |
| Backlight | 3S3P WLED , 50K hours , No Driver |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| Voltage Supply | 3.3/10.4/16/-7V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |

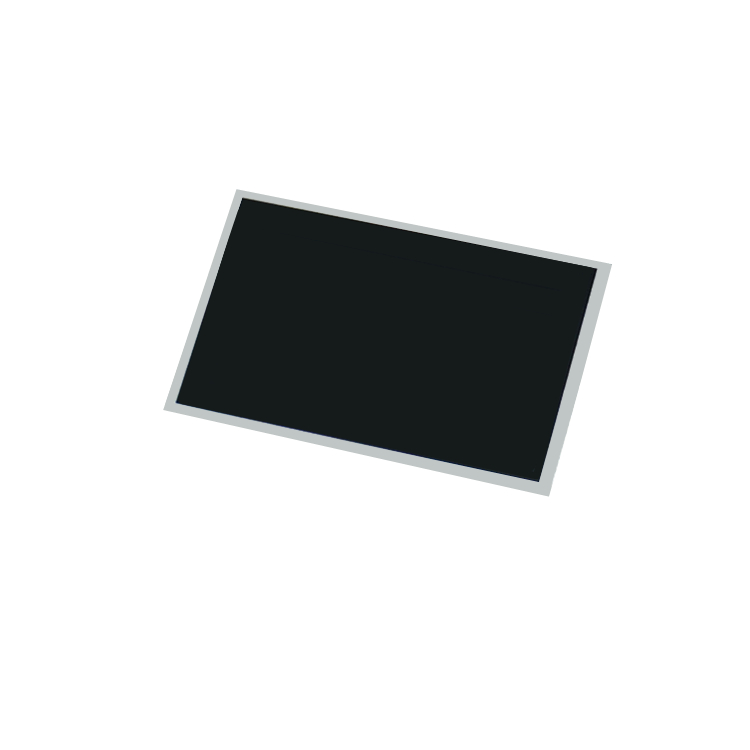

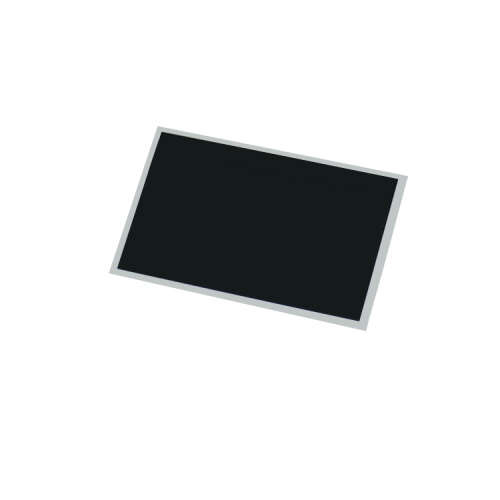

Product Picture:
